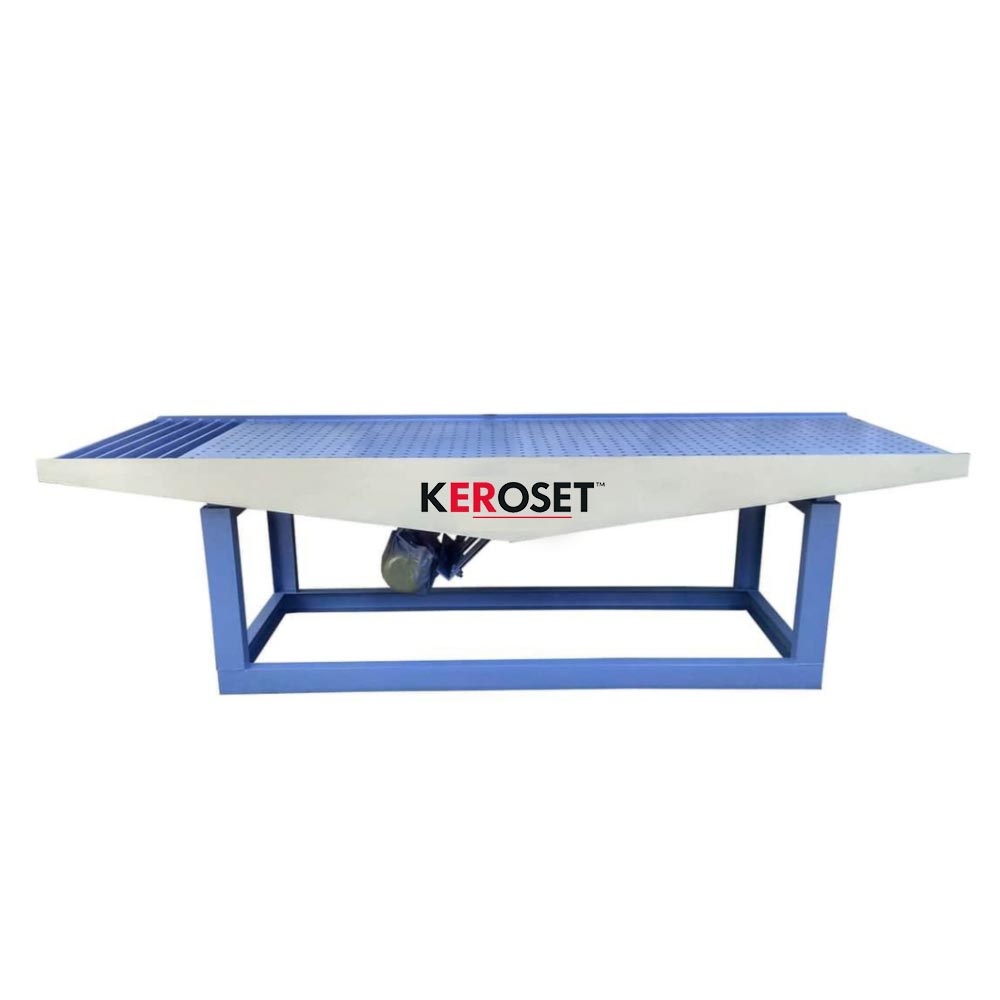

Model- KMC 007 : Vibration Table
Technical Specification
Table size | 10ft x 3ft |
Electric motor | 2hp/3hp 3phase (Special vibration motor) |
Production Capacity | 2500 to 3000 pcs. |
Material use for Build | Top pallet 8/10mm, side pallets 8/10mm |
Application | For Making paver block, chequared tiles, curb stone, covering block through pvc rubber or plastic mould. |
Technical Specification
| Diameter | 750 MM |
| Pan Height | 300 MM |
| Mixing Capacity | 100kg to 120kg |
| Electric Motor | 2HP 3phase |
| Oil Capacity | 10ltr. Gear Oil |
| Material Mixing | By Heavy hand faced |
| Material Charges/Discharge | Manual |
| Material use for Build | Bottom pallet 8mm, side pallets 6mm |
| Application | For color mixing top color layer of paver blocks. |

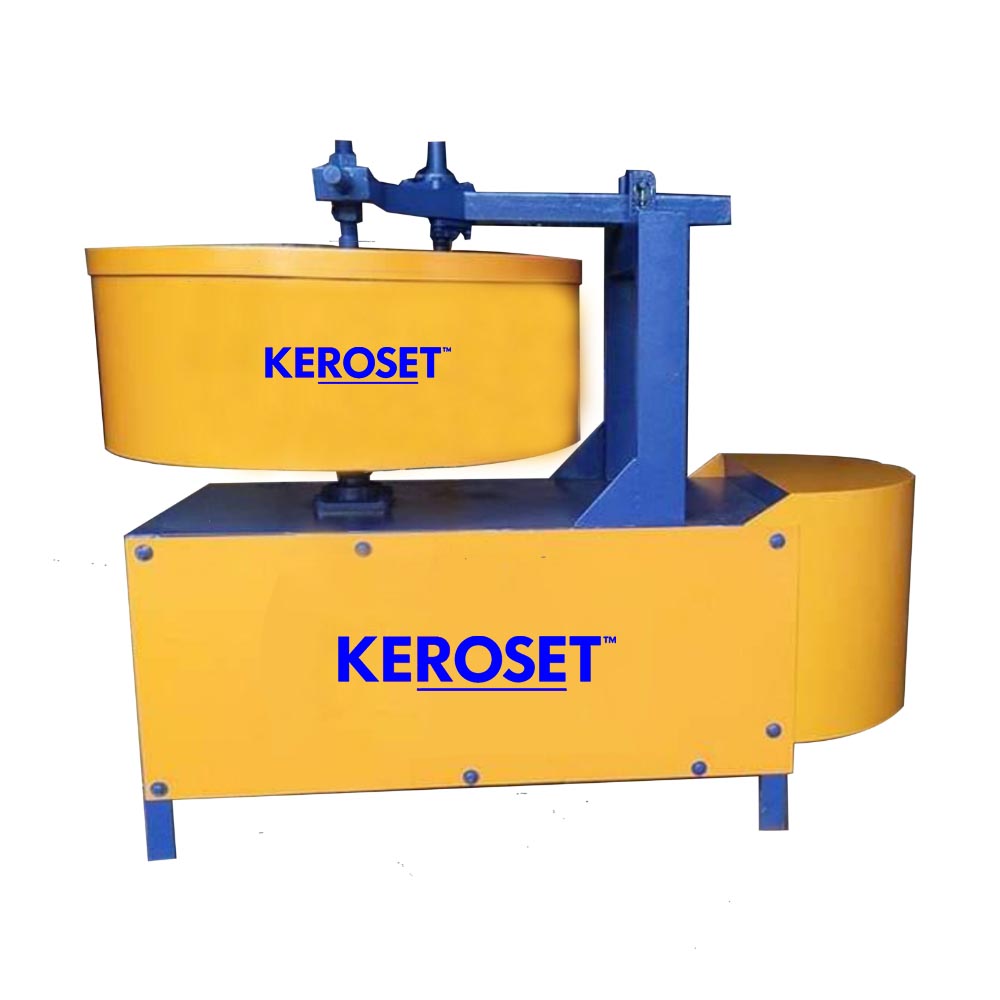

Model- KMC 008 : Color Mixer Machine

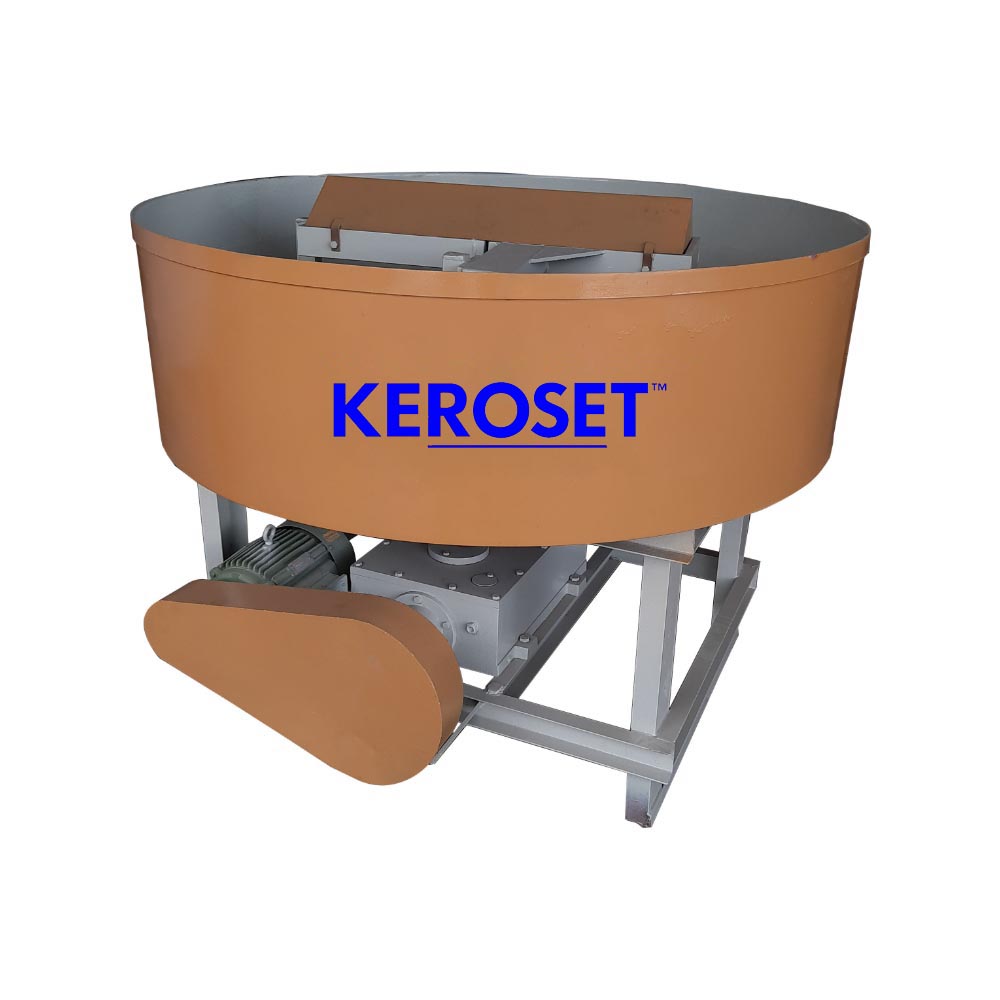

Model- KMC 009 : Blade Pan Mixer Machine
Technical Specification
Diameter | 1500 MM/1800 MM |
Pan Height | 500 MM |
Mixing Capacity | 400kg to 500kg |
Electric Motor | 5HP/7.5HP 3phase |
Oil Capacity | 15ltr. Gear Oil |
Material Mixing | By Heavy hand faced scraper |
Material Charges | Manual |
Material Discharges | Manual bottom door opening |
Material use for Build | Bottom pallet 12/15mm,side pallets 6/8mm |
Application | Mixing raw material of concrete, sand, cement 2nd layer of paver block |
